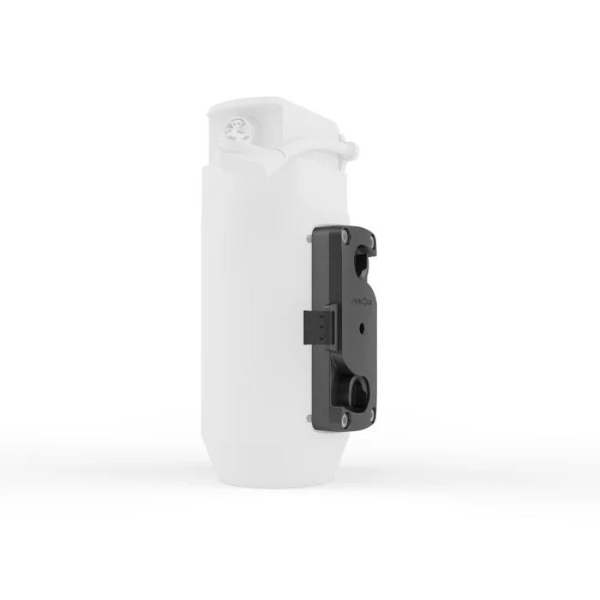

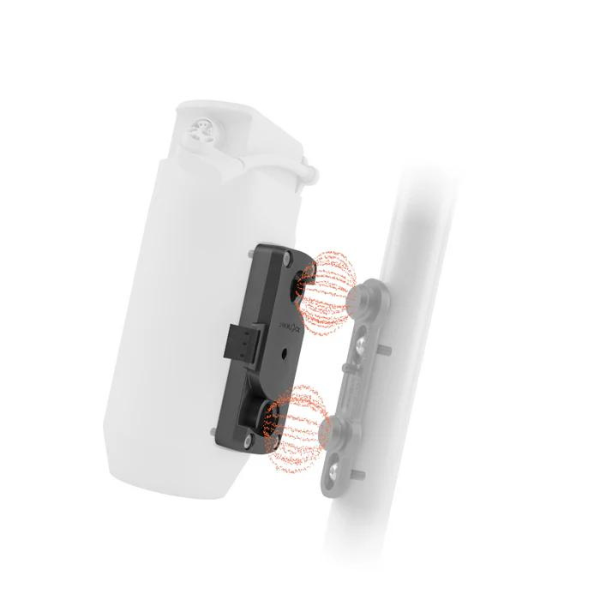

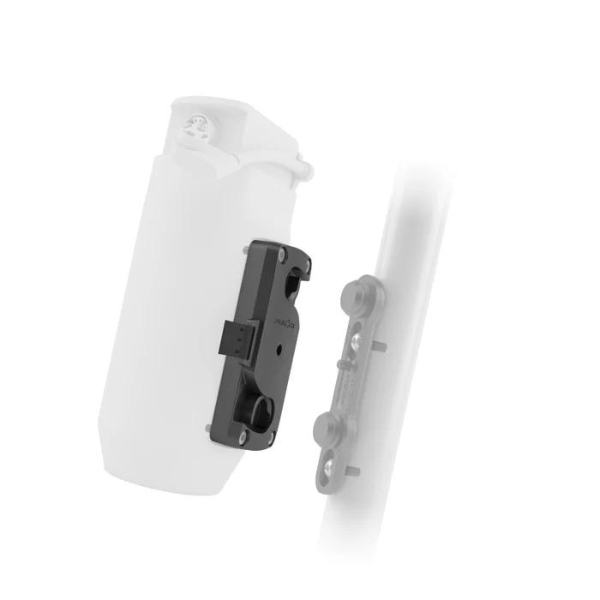

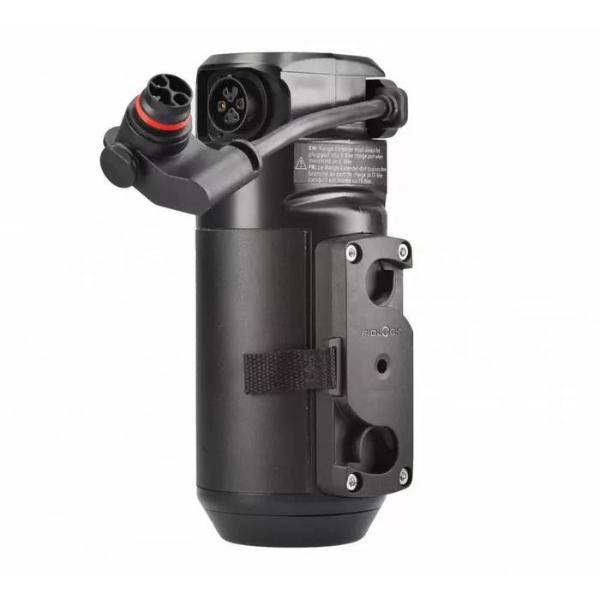

The new TWIST force connector is the perfect addition to a TQ e-bike battery range extender. It offers secure and rattle-free battery mounting thanks to a clever locking mechanism. Together with the TWIST force connector, a TQ e-bike battery range extender becomes TWIST system ready, which enables the range extender to be attached and removed flexibly and quickly.
Features:
The TWIST force connector for range extender is compatible with: TQ HPR Range Extender V01 160 Wh.
- Make your range extender TWIST system ready
- Secure hold thanks to locking mechanism

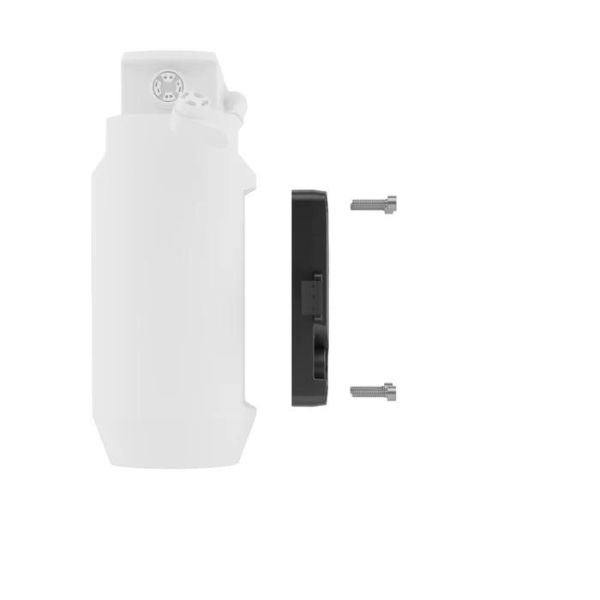

- Easy to attach with screws
Technical Data:
- Compatibility: all firmly screwed TWIST bases
- Turning direction: counterclockwise max.
- Dimensions: 46 x 100 x 17 mm
- Screws: 4x M4x16, DIN 912 / ISO 4762
- Weight: 72 g
